High Durability Titanium Flange Plate Gr2 Gr7 PN10 – Suitable for Pipeline System Pressure

Name: High Durability Titanium Flange Plate Gr2 Gr7 PN10 Suitable for Pipeline System Pressure
Brand: LHTi
Price: 1 USD

Brand Name : LHTi

Certification : ISO9001,CE,etc

Place of Origin : Baoji, China

MOQ : 100 pieces

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 Ton/Tons Per Month

Delivery Time : about 15-45 days for delivery

Packaging Details : Plywood case or pallet, or as per your requirement

Material Grade : Gr2 Gr5 Gr7

Porduct Name : Titanium blind flange

Connection Type : Weld

Standards : ASME B16.5

Bolt Circle Diameter : 3.5 inches

Processing Service : Welding

Processing Method : Forged, CNC machine

Sealing Type : RF

Contact Now

High Durability Titanium Alloy Flange Plate Gr2 Gr7 PN10 – Suitable for Pipeline System Pressure Testing

Product Overview

The High Durability Titanium Alloy Flange Plate Gr2 Gr7 PN10 is a high-performance solution for pipeline system pressure testing. It is made from high-quality Gr2 and Gr7 titanium alloys, offering exceptional strength, outstanding corrosion resistance, and stability under high-pressure conditions. This titanium alloy flange plate is ideal for applications in industries such as chemical engineering, marine engineering, and other sectors that require high durability and leak-free testing.

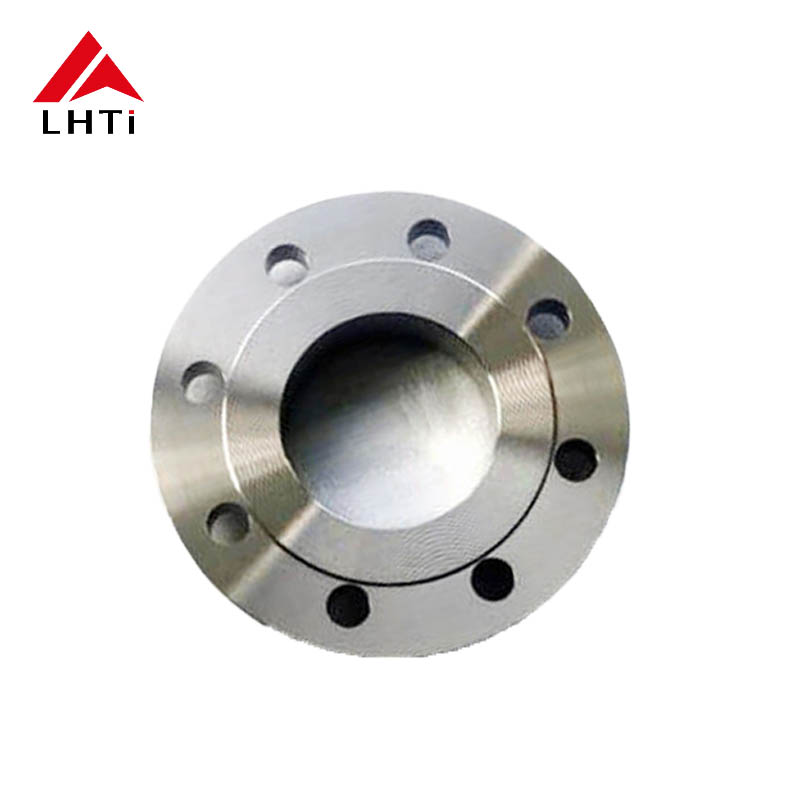

High Durability Titanium Flange Plate Gr2 Gr7 PN10 – Suitable for Pipeline System Pressure

Key Features:

Feature	Description
Material	Made from Gr2 and Gr7 titanium alloys, with Gr2 titanium offering excellent corrosion resistance and Gr7 providing enhanced resistance to chemical corrosion.
Pressure Rating	PN10, supporting a maximum working pressure of 10 bar (approximately 145 psi). Suitable for medium-pressure systems.
Corrosion Resistance	Titanium alloys naturally resist corrosion in harsh media like chlorides, ensuring long-term stability. Gr7 titanium alloy provides additional protection against pitting and crevice corrosion.
High Durability	Performs excellently under high pressure and corrosive environments, ensuring reliable sealing and reducing leakage risks, thereby enhancing system stability.
Lightweight and Easy to Handle	The high strength and low density of titanium alloys make the flange plate easier to handle and install compared to traditional materials like steel, while maintaining high durability.

Technical Specifications

Parameter	Value
Material	Gr2 Titanium Alloy, Gr7 Titanium Alloy
Size	Customizable to client needs, common sizes: DN50-DN200
Pressure Rating	PN10, supports maximum working pressure of 10 bar (145 psi)
Temperature Range	-50°C to 300°C
Surface Treatment	Natural surface of titanium alloy, offering additional corrosion protection
Applicable Standards	Suitable for ANSI B16.5 and DIN 2633 standards

Product Advantages

Advantage	Description
Reliable Pressure Testing	Ensures structural integrity during pipeline system testing, reducing leaks and enhancing safety.
Long-lasting Durability	Titanium alloys have a long service life, reducing frequency of replacements and maintenance.
Outstanding Corrosion Resistance	Especially suitable for chemical, marine, and water treatment environments, ensuring long-term stable operation.
Cost-effective	Although the initial investment in titanium alloys is higher, their durability and stability reduce long-term maintenance and replacement costs.

Application Fields

Application Field	Description
Pipeline System Pressure Testing	Primarily used for testing pipeline system integrity, ensuring leak-free and safe performance.
Water Treatment Industry	Suitable for water treatment plants and seawater desalination plants, ensuring corrosion resistance and high pressure performance.
Marine and Offshore Applications	Performs excellently in marine environments, resistant to saltwater corrosion and able to withstand high pressures.
Chemical Industry	Suitable for chemical plants and other industries with high corrosion and pressure requirements.
Cryogenic Systems	Titanium alloys maintain strength and structural integrity in low-temperature applications, making them ideal for cryogenic systems.

Usage and Maintenance

Installation Advice: Suitable for standard flange connections. Ensure that the flange surfaces are clean and flat before installation to prevent leaks.
Maintenance: Titanium alloy flange plates are highly corrosion-resistant and do not require frequent maintenance. However, in highly corrosive environments, it is recommended to check the flange contact surfaces periodically.
Applicable Environments: Widely applicable in marine engineering, chemical production lines, water treatment, oil and gas, and many other industries, particularly in high-corrosion environments.

Conclusion

The High Durability Titanium Alloy Flange Plate Gr2 Gr7 PN10 is a high-performance solution designed for pipeline system pressure testing. With exceptional strength, corrosion resistance, and stability, it ensures reliable performance in various harsh environments. Whether used in water treatment, marine engineering, or chemical industries, this titanium alloy flange plate provides long-term efficient performance and is the ideal choice for ensuring the safe operation of pipeline systems.
