ASME B16.34 8 Inch Titanium Three-Way Ball Valve Gr1 Gr2 Ball Valve

Brand Name : LHTi

Model Number : TItanium Ball Valve

Certification : ISO9001,CE,etc

Place of Origin : Baoji, China

MOQ : 100 pieces

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 Ton/Tons Per Month

Delivery Time : about 15-45 days for delivery

Packaging Details : Plywood case or pallet, or as per your requirement

Fire Safe : Yes

Ball Materials : Titanium TA1、TA2、TA10、Gr2、Gr3

Port Rating : ASME Class 150, Flanged Ends

Type : 2 Piece Ball Valve

Sealing Material : PTFE, RPTFE, PEEK

Operation : Manual, Gear, Pneumatic, Electric

Blowout Proof Stem : Yes

Operation Type : Manual

Contact Now

ASME B16.34 8 Inch Titanium Three-Way Ball Valve (Gr1, Gr2)

The ASME B16.34 8 Inch Titanium Three-Way Ball Valve is a high-performance valve designed for use in demanding industrial applications. Manufactured from titanium grades Gr1 and Gr2, this valve offers excellent corrosion resistance, making it ideal for industries such as chemical processing, water treatment, oil & gas, and seawater applications. The three-way design allows for versatile flow routing, enhancing the valve's utility in complex piping systems.

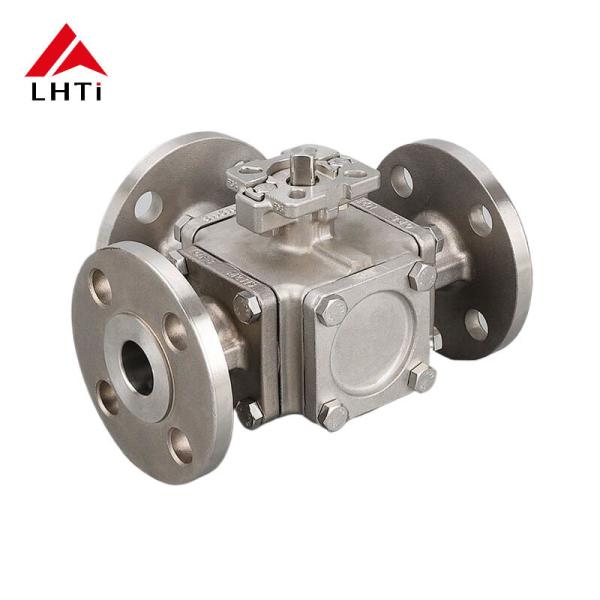

ASME B16.34 8 Inch Titanium Three-Way Ball Valve Gr1 Gr2 Ball Valve

Key Features of the Titanium Three-Way Ball Valve

Feature Description
Material Manufactured from Titanium Gr1 and Gr2 for superior corrosion resistance.
Valve Type Three-way ball valve, ideal for directing or mixing fluid in multiple directions.
Size 8 inches, designed to handle large volumes of fluid flow efficiently.
Standard Compliance Designed and manufactured according to ASME B16.34, ensuring high quality and reliability.
End Connections Flanged connections for easy installation in existing pipelines.
Temperature Range Can operate effectively in a wide temperature range, from cryogenic to high temperatures.

Titanium Grades (Gr1 & Gr2)

Titanium is known for its excellent corrosion resistance, and the choice of grade depends on the application requirements.

Grade Composition Properties Applications
Gr1 Pure Titanium High corrosion resistance, lower strength compared to Gr2. Used in less demanding environments, such as mild chemical processing or seawater.
Gr2 Titanium Alloy Balanced strength and corrosion resistance. Commonly used in chemical processing, water treatment, and oil & gas industries.

Working Principle of the Three-Way Ball Valve

The three-way ball valve is a versatile valve that can be used to divert flow, mix flows, or regulate fluid direction within a system. The valve features a ball with three ports, which can be rotated to control the direction of flow.

Function Description
Flow Diverter Diverts the flow from one inlet to multiple outlets, or vice versa.
Flow Mixer Mixes fluids from different sources into one stream.
Flow Regulator Regulates the flow to multiple parts of the system, ensuring balanced pressure.

Applications of the ASME B16.34 8 Inch Titanium Three-Way Ball Valve

The Titanium Three-Way Ball Valve is designed for use in a variety of demanding environments, where both corrosion resistance and flow control are critical.

Industry Application
Chemical Processing Used for diverting and mixing chemical flows while maintaining high corrosion resistance.
Water Treatment Handles the mixing and diverting of water flow in treatment plants.
Oil & Gas Suitable for high-pressure systems and aggressive fluids in oil and gas pipelines.
Marine/Seawater Ideal for offshore platforms and marine applications where seawater corrosion resistance is essential.

Advantages of the Titanium Three-Way Ball Valve

Advantage Description
Superior Corrosion Resistance Titanium provides excellent resistance to corrosion, especially in harsh chemical or seawater environments.
Versatility The three-way design allows for multiple flow directions, making it highly versatile in complex piping systems.
High Strength-to-Weight Ratio Titanium is strong yet lightweight, making the valve easy to handle and install while providing durability.
Long Service Life Titanium’s resistance to wear and tear extends the valve’s operational life, reducing maintenance costs.
Leak-Free Operation The precision ball design ensures tight sealing, preventing leaks and improving operational efficiency.

Specifications

Specification Value
Size 8 inches
Pressure Rating Up to 1500 psi (depending on material and application)
Temperature Range -50°C to 350°C (depending on material)
Valve Type Three-way ball valve
Material Titanium Gr1 and Gr2
Standard Compliance ASME B16.34
Connection Type Flanged (RF or RTJ)

Conclusion

The ASME B16.34 8 Inch Titanium Three-Way Ball Valve is an excellent choice for industries requiring a durable, corrosion-resistant, and versatile valve. With its high strength-to-weight ratio and ability to handle various flow directions, this valve is ideal for complex fluid systems in chemical processing, oil & gas, water treatment, and marine applications. The use of titanium ensures longevity and reduces the need for frequent replacements, making it a cost-effective solution for critical applications.
