Brand Name : LH-Ti
Model Number : Gr2 titanium round seamless pipe and tube
Certification : ISO9001:2015
Place of Origin : Shaanxi, China
MOQ : 5 Kg
Price : $20.00~$30.00/kg
Payment Terms : L/C, T/T, MoneyGram,Paypal
Supply Ability : 10000 Kilogram/Kilograms per Month
Delivery Time : 10-25 work days
Packaging Details : First, packaging with moisture-proof paper; Second, packaging with kraft paper; Third, packaging with foam plastics in all side of plywood case.
Standard : ASTM
Technique : Seamless, Cold Drawn
Processing Service : Bending, Welding, Decoiling, Cutting, Punching
Material : Titanium
Grade : Titanium, Gr2 Gr5 Gr7 Gr9 Gr12
Application : Industrial
Outer Diameter : 10-300mm
Inside Diameter : 4~268mm
Gr9 Titanium Tubes For Titanium Bicycle Frame Titanium Pipe
Application: Exhaust pipes for automobiles, exhaust pipes for motorcycles, bicycle racks, oil pipes, titanium pipes in the aviation field, etc.titanium frame builders,lynskey bike frames,guru titanium bikes,titanium single speed mountain bike,titanium frame gravel bike,titanium road bike frame
Chemical requirements | |||||||||||
N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
Tensile requirements | |||||
Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
KSI | MPa | Ksi | MPa | ||
1 | 35 | 240 | 20 | 138 | 24 |
2 | 50 | 345 | 40 | 275 | 20 |
5 | 130 | 895 | 120 | 828 | 10 |
7 | 50 | 345 | 40 | 275 | 20 |
12 | 70 | 438 | 50 | 345 | 18 |
![]() |

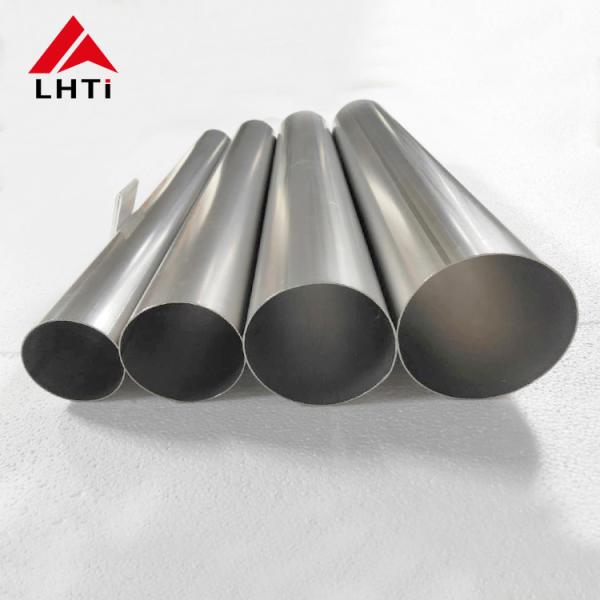

Gr9 Titanium Tubes For Titanium Bicycle Frame Titanium Pipe Images |
