Titanium Welded Pipe Titanium Pipe

Name: Titanium Welded Pipe Titanium Pipe
Brand: LH-Ti
Price: 20.00 USD

China Titanium Welded Pipe Titanium Pipe factory

Brand Name : LH-Ti

Model Number : Gr2 titanium round seamless pipe and tube

Certification : ISO9001:2015

Place of Origin : Shaanxi, China

MOQ : 5 Kg

Price : $20.00~$30.00/kg

Payment Terms : L/C, T/T, MoneyGram,Paypal

Supply Ability : 10000 Kilogram/Kilograms per Month

Delivery Time : 10-25 work days

Packaging Details : First, packaging with moisture-proof paper; Second, packaging with kraft paper; Third, packaging with foam plastics in all side of plywood case.

Standard : ASTM

Technique : Seamless, Cold Drawn

Processing Service : Bending, Welding, Decoiling, Cutting, Punching

Material : Titanium

Grade : Titanium, Gr2 Gr5 Gr7 Gr9 Gr12

Application : Industrial

Outer Diameter : 10-300mm

Inside Diameter : 4~268mm

Contact Now

Titanium Welded Pipe Titanium Pipe

Standard:,ASTM B338,ASTM B862 ASME SB338
Certification:IOS9001:2015,ISO/TS 16949:2009
Outer diameter:6mm - 89mm Length ≤25000mm
Wall thickness:0.3-3mm
Material:Gr1(TA1),Gr2(TA2),Gr12(TA10)

Titanium Welded Pipe, also known as welded pipe, is made of titanium or titanium after welding through the formation of pipe. We supply Titanium welded tube with standard ASTM B862 and AMS 4941, the titanium tube can be widely used for the chemical industry and seawater desalination application, etc.

Titanium welded tubes are processed from titanium coil, and longitudinally welded by TIG process without metal filler, so it guarantees the homogeneity of the welded area. what is more, due to the advantages such as evenness of the wall thickness, each tube’s part having the same mechanical properties of the initial coils, more and more process equipment manufactory prefer to choose titanium welded tube rather than seamless for their project.

Chemical requirements
	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile requirements
Grade	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18

Titanium Welded Pipe Titanium Pipe

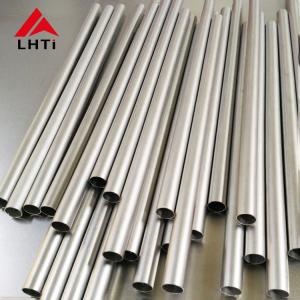

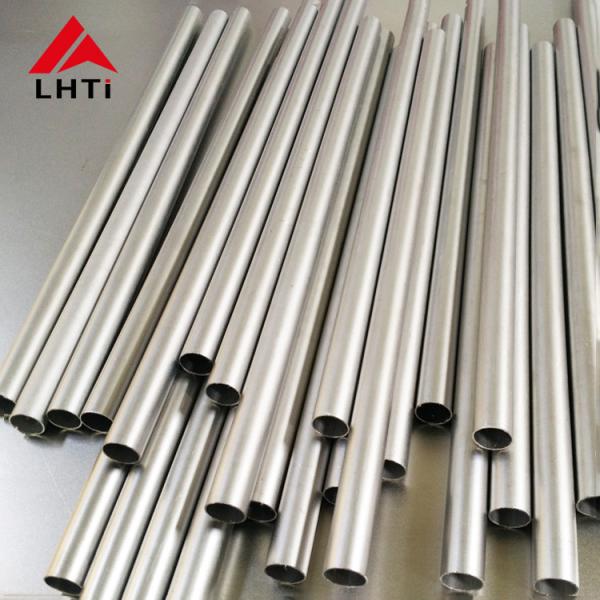

Titanium Welded Pipe Titanium Pipe Images
