ASTM B265 Gr9 Gr12 Thin Titanium Sheet Square Shape Acid Washing

Baoji Lihua Nonferrous Metals Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

ASTM B265 Gr9 Gr12 Thin Titanium Sheet Square Shape Acid Washing

  • 1
  • 2
  • 3

Brand Name : LHTi

Model Number : Titanium Sheet

Certification : ISO9001:2015; TUV; SGS;BV

Place of Origin : China

MOQ : 50 kg

Payment Terms : T/T, MoneyGram, L/C, Western Union

Supply Ability : 200000 kg per month

Delivery Time : 10-28 work days

Packaging Details : Plywood box with soft foam for additional protection

Standard : ASTM B265

Technology : Cold rolled

Shape : square

Surface : Polished, Acid Washing

Contact Now

Gr9 Gr12 Thin Titanium Sheet Acid Washing

Appearance: Silver grey white metal
Melting point: 194k (1668°C, 3034°F)
Boiling point: 3560 K (3287°C, 5949°F)
Density (near room temperature) : 4.506 g/cm3
Liquid time (melting point) : 4.11 g/cm3
Heat of fusion: 14.15 kJ/mol
Heat of vaporization: 425 kJ/mol
Molar heat capacity: 25.060 J/(mol·K)

Gr12 Ti-0.3Mo-0.8Ni titanium molybdenum nickel alloy plate is a kind of corrosion resistance titanium alloy, is in order to improve the pure titanium gap corrosion performance of the alloy, the alloy contains 0.3%Mo and 0.8%Ni, not only strengthen the alloy, but also for high temperature, low PH fireworks without or weak reducing acid has good gap corrosion resistance, Its corrosion resistance is significantly better than pure titanium plate. It also has good process plasticity and welding performance and has been widely used in chemical industry.

Chemical requirements
N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal

Tensile requirements
Grade Tensile srength(min) Yeild strength(mm) Elongation(%)
KSI MPa Ksi MPa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
12 70 438 50 345 18

ASTM B265 Gr9 Gr12 Thin Titanium Sheet Square Shape Acid Washing


Product Tags:

Acid Washing Thin Titanium Plate



Gr9 Thin Titanium Sheet



Gr12 Square Titanium Sheet


China ASTM B265 Gr9 Gr12 Thin Titanium Sheet Square Shape Acid Washing factory

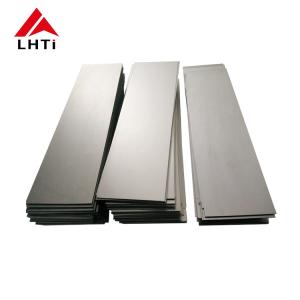

ASTM B265 Gr9 Gr12 Thin Titanium Sheet Square Shape Acid Washing Images
