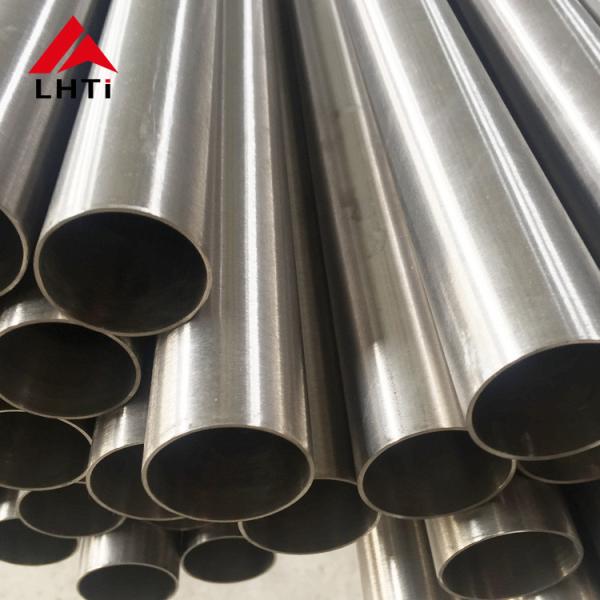

Gr1 Gr2 Gr5 Pure Titanium Pipe / Tube For Heat Exchanger

Brand Name : LHTI

Model Number : LH-01

Certification : ISO9001

Place of Origin : BaoJi City Shaanxi China

MOQ : If in stock, sample is available; If not in stock,100kgs of each size

Price : US dollar $23/kg-US dollar $31/kg

Payment Terms : L/C, D/P, T/T, Western Union,Paypal.etc

Supply Ability : 5 tons per month

Delivery Time : 15 working days

Packaging Details : Each tube with environmental protection bags,outside is standard plywood case

Key words 1 : Factory Gr2 Gr1 Gr5 Gr7 Gr9 Gr12 Gr23 Titanium Pipe Prices Seamless Tube From Factory

Key words 2 : 20mm GR2 titanium tube

Key words 3 : Titanium Heat Exchanger tube

Material : Pure titanium

Grade : Grade 2

Purity : 99.5%min

Length : Max 12 meter

Surface : Pickling surface

Application : Heat Exchanger

Production time : 15 working days

Payment term : T/T,Paypal,Western union etc

Contact Now

Gr1, Gr2 Gr5 Titanium Tube Pure Titanium Titanium Pipe/tube

Titanium Tube Information

Name Pure Titanium & Titanium Alloy Tube /Pipe/Tubing
Tube Shape Round Square Flat Coil
Material Gr1,Gr2,Gr7,Gr12.
Standard ASTM SB338
Type

Seamless
OD 20 mm
Wall Thickness 1.2mm or as customized
Length Max 12 meter
End Plain End, Beveled End, Threaded
Certificate EN 10204/3.1B,
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report---TUV,BV,SGS etc
Application

Off-Shore Oil Drilling Companies

Power Generation

Petrochemicals

Gas Processing

Specialty Chemicals

Pharmaceuticals

Pharmaceutical Equipment

Chemical Equipment

Sea Water Equipment

Heat Exchangers

Condensers

Pulp and Paper Industry

Grade Tensile Strength(min) Yeild Strength(0.2% offset)) Elongation(%)
ksi MPa Min Max
Ksi Mpa Ksi Mpa
1 35 240 25 170 45 310 24
2 50 345 40 275 65 450 20
7 50 345 40 275 65 450 20
9 90 620 70 483 - - 15C
12 70 483 50 345 - - 18C

Grade N C H Fe O Al V Ti Other , max
1 0.03 0.08 0.015 0.20 0.18 / / Bal 0.4
2 0.03 0.08 0.015 0.30 0.25 / / Bal 0.4
7 0.03 0.08 0.015 0.30 0.25 / / Bal 0.4
9 0.03 0.08 0.015 0.25 0.15 2.5-3.5 2.0-3.0 Bal 0.4
12 0.03 0.08 0.015 0.30 0.25 / / Bal 0.4
