Competitive price industry application gr1 gr2 gr5 titanium sheet ASTM B265
1. Product Information ofTitanium Sheet
Material: GR1, GR2, GR5, GR7, GR12, GR5 ELI, GR23
Standard: ASTM B265, AMS4911, ASTM F67, ASTM F136
Thickness: 0.5-100mm
Length: 500-6000mm or as you require
Width: 500-1000mm or as you require
Surface: Pickling, Polishing, Sand blasting etc.
Type: Sheet, plate, foil; Straight & roll
2. Specification of Titanium Foil/Titanium Sheet/Titanium Plate
| Specification of Titanium Foil/Titanium Sheet/Titanium Plate |
| | Thickness(mm) | Width(mm) | Length(mm) |
| Titanium foil | 0.03-0.5 | 30-150 | 30-200 |
| Titanium sheet | 0.5-5 | 30-1000 | 30-2000 |
| Titanium plate | 5-60 | 200-2800 | 1000-6000 |
3. Chemical Requirements of Titanium Sheet
| | N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
4. Tensile Requirements of Titanium Sheet
| Grade | Tensile strength(min) | Yield strength(min) | Elongation(%) |
| ksi | M Pa | ksi | M Pa |
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 9 | 90 | 620 | 70 | 438 | 15 |
| 12 | 70 | 438 | 50 | 345 | 18 |

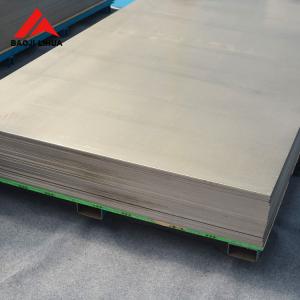

5. Detailed Images of Titanium Sheet
6. Package of Titanium Sheet
The packaging of Titanium Sheet is done by our factory according to the specification and size of the sheets being delivered. Most of sheets are packed in standard export plywood box in order to avoid the fumigation and damage of goods during the shipment. Packaging is considered as the important parameter when the products are shipped internationally.
