gr2 OD25.4mm 1.5'' Thick 1.2mm titanium tube seamless for chemical industry
1. Product Feature
Titanium seamless tubes have the feature of light weight, high strength and superior mechanical properties. Titanium tubes are widely used in heat-exchange equipment, such as tube type heat-exchanger, coiled type heat-exchanger, coil heat-exchanger, condensator, evaporator and transmission pipeline. Many nuclear power industry ues titanium tubes as the unit standard tubes.
2. Chemical requirements
| | N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
3. Tensile requirements
| Grade | Tensile strength(min) | Yield strength(min) | Elongation(%) |
| ksi | M Pa | ksi | M Pa |
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 9 | 90 | 620 | 70 | 438 | 15 |
| 12 | 70 | 438 | 50 | 345 | 18 |
4. Quality Assurance
A. According to globally recognized standards, such as ASTM, AMS, ASME. Provide third-party inspection reports. ISO Quality Management System.
B. Visual inspection to check surface quality, ensuring without flaw, black dot and other defects.
C. Chemical Composition making sure all chemical components can satisfy customer’s demands.
D. Mechanical Property testing making sure all titanium products have satisfying mechanical features before delivery.
5. Product Details Information
Standard: ASTM B338, ASTM B861
Specification: OD5.0-114.0mm x WT0.5-7.0mm x 1000-1200mm, OD55mm-914mm x WT1.0-10.0mm x 1000-6000mm, or according to customer’s requirement.
Condition: Annealed(M)
Usage: a) Fluid, gas and oil transport;
b)General service industries (petroleum, food, chemical, paper, fertilizer, fabric, aviation and nuclear);
c)Construction and ornament
e)Boiler heat exchangers
Certificate: ISO9001:2015, TUV, EN10204.3.1

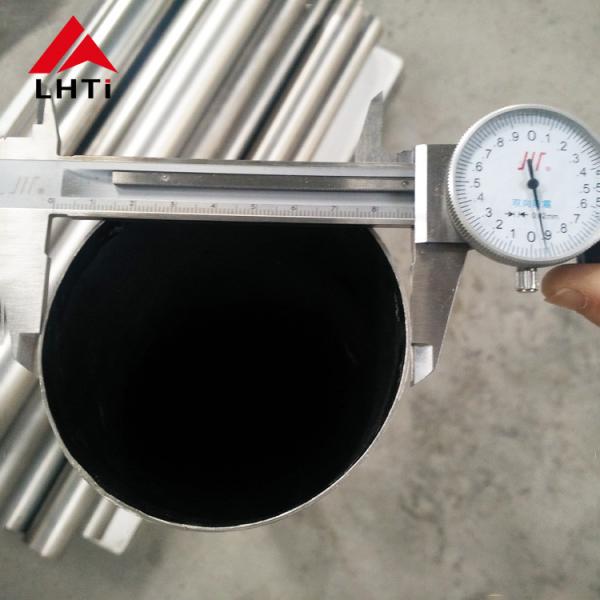

6. Detailed Images
7. Quality Assurance
A. According to globally recognized standards, such as ASTM, AMS, ASME. Provide third-party inspection reports. ISO Quality Management System.
B. Visual inspection to check surface quality, ensuring without flaw, black dot and other defects.
C. Chemical Composition making sure all chemical components can satisfy customer’s demands.
D. Mechanical Property testing making sure all titanium products have satisfying mechanical features before delivery.
